CUDA PTX: Learning to Read NVIDIA's Virtual ISA

TL;DR

• PTX is not the real hardware ISA. It is NVIDIA’s virtual instruction set that sits between CUDA C++ and SASS.
• PTX is the best layer for learning how the compiler thinks about types, addresses, predicates, and memory spaces.
• SASS is where architecture-specific details appear: actual opcodes, scheduling metadata, scoreboard behavior, and pipeline usage.
• If you can read PTX, you can usually answer: what computation is happening, what memory space it touches, and why the compiler generated a certain structure.
• If you want to optimize the last 20%, you eventually need to correlate PTX with SASS and measured hardware behavior.

CPU Baseline: Why GPUs Need a Virtual ISA Layer

On CPUs, most people think in terms of:

C/C++ -> x86-64 or ARM64 assembly -> hardware

On NVIDIA GPUs, there is an extra layer:

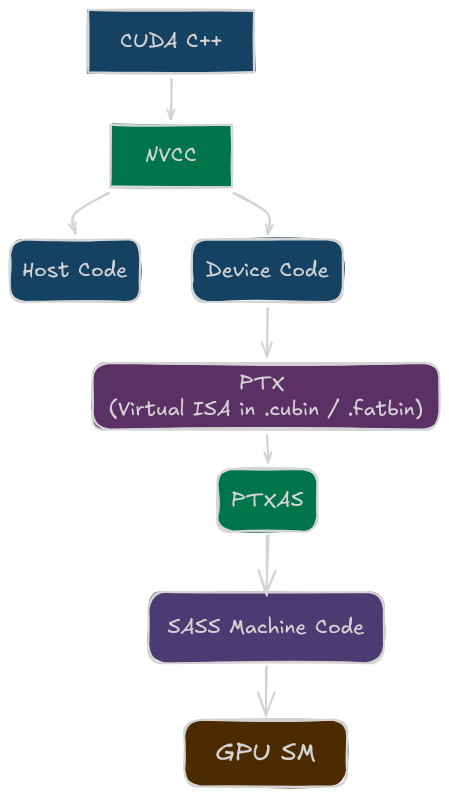

CUDA C++ -> PTX -> SASS -> hardware

That extra layer exists for a practical reason: portability.

PTX is stable across GPU generations. SASS is not.

PTX lets NVIDIA keep a stable compiler target while still generating different hardware instructions for Volta, Ampere, Hopper, Blackwell, or whatever comes next.

That is why PTX feels a bit like LLVM IR for CUDA developers: not exactly source, not exactly machine code, but the most useful middle ground.

What is PTX?

PTX stands for Parallel Thread Execution. It is a virtual instruction set architecture (ISA) designed by NVIDIA to serve as an intermediate representation for CUDA programs. When you write a CUDA kernel in C++, the NVIDIA compiler (nvcc) compiles it down to PTX code. This PTX code is then further compiled by ptxas into SASS (the actual assembly language for NVIDIA GPUs) that runs on the hardware. Think of PTX as the point where CUDA stops being “high-level C++ with kernels” and starts becoming a GPU program description.

Why Start with PTX?

Coming from CUDA kernel development, PTX is still close enough to the source code to be readable, while already exposing the machine-oriented ideas that matter on GPUs:

• explicit data types
• explicit state spaces
• predicated execution
• address calculations
• and the compiler’s lowered control flow

What PTX Is and What It Is Not

PTX is

• a virtual ISA,
• strongly typed,
• explicit about memory spaces,
• readable enough for humans,
• and designed to be lowered into hardware-specific SASS.

PTX is not

• the exact instruction stream that runs on the SM,
• a guarantee of final opcode selection,
• a guarantee of final register count,
• or a guarantee of final scheduling behavior.

That distinction matters.

If you see this in PTX:

mul.lo.s32 %r4, %r2, %r3;

you know the compiler wants an integer multiply with the low 32 bits of the result.

You do not yet know:

• the exact SASS opcode,
• whether it shares a pipe with FP32 on the target GPU,
• how many physical registers survive allocation,
• or what latency-hiding behavior the final kernel exhibits.

PTX tells you the intent. SASS tells you the implementation.

Anatomy of a PTX Instruction

The general pattern is:

opcode[.modifier].type   destination, source1, source2, ...;

Example:

add.s32 %r0, %r1, %r2;

Break it down:

• add -> operation
• .s32 -> signed 32-bit integer type
• %r0 -> destination
• %r1, %r2 -> input operands

Another example:

fma.rn.f32 %f4, %f1, %f2, %f3;

• fma -> fused multiply-add
• .rn -> round-to-nearest
• .f32 -> 32-bit floating point

PTX is explicit by design. Unlike C++, there are no silent promotions hiding inside the instruction text.

PTX Register Declaration and Naming

PTX uses virtual registers. They are not the final physical registers of the GPU.

You will commonly see names like these:

Example declarations in handwritten PTX look like this:

.reg .b32  %r<6>;    // declare 6 virtual 32-bit integer/bit registers: %r0..%r5
.reg .b64  %rd<6>;   // declare 6 virtual 64-bit integer/address registers: %rd0..%rd5
.reg .f32  %f<5>;    // declare 5 virtual 32-bit floating-point registers: %f0..%f4
.reg .pred %p<2>;    // declare 2 predicate (boolean mask) registers: %p0..%p1

Two important points:

1. These are virtual registers in PTX.
2. Final physical allocation happens later in ptxas.

That means a PTX file can look like it uses many registers, yet the final SASS allocation may differ substantially after optimization, dead code removal, copy coalescing, and spilling decisions.

CPU contrast

On x86-64, the assembly names you see are architectural register names such as rax, rbx, xmm0, ymm1.

On PTX, the names are closer to compiler temporaries.

This is one of the biggest mindset shifts when moving from CPU assembly to GPU IR.

The Most Important PTX Data Types

PTX is typed at the instruction level.

Examples:

add.s32    %r0, %r1, %r2;
add.f32    %f0, %f1, %f2;
mul.wide.u32 %rd0, %r1, %r2;

No implicit mixed-type arithmetic

There is no add.s32.u32 in PTX. One instruction has one operand type family, so when types do not match, the compiler must make the change explicit using the following:

1. Conversion (cvt) -> change representation/type of a value.
2. Widening Arithmetic (.wide) -> keep arithmetic exact by writing into a wider destination.

Conversion with cvt

Use cvt when the value itself must change type (integer ↔ float, 32-bit ↔ 64-bit, signed ↔ unsigned interpretation with extension).

The general form is:

cvt.type_dst.type_src   dest, src

Examples:

cvt.s64.s32   %rd0, %r0    // sign-extend int32 → int64  (MOVSX equivalent)
cvt.u64.u32   %rd0, %r0    // zero-extend uint32 → uint64 (MOVZX equivalent)
cvt.f32.u32   %f0,  %r0    // uint32 → float  (CVTSI2SS equivalent)
cvt.f64.f32   %fd0, %f0    // float → double  (CVTSS2SD equivalent)

For floating-point conversions, PTX usually makes rounding mode explicit.

cvt.rn.f32.s32 %f0, %r0    // int32 → float, round-to-nearest

For integer-to-integer extension, no floating-point rounding qualifier is needed.

Widening Arithmetic with .wide

Use mul.wide when you want a full-width product from narrower operands (common in address/offset math).

mul.wide.s32  %rd0, %r0, %r1   // s32 * s32 → s64, no overflow
mul.wide.u32  %rd0, %r0, %r1   // u32 * u32 → u64, no overflow

On x86, widening behavior is often implicit in specific instructions. In PTX, it is explicit and readable. NVCC emits mul.wide when it can prove the result needs wider precision, which is why this CUDA idiom:

int64_t offset = (int64_t)row * stride;  // cast one operand to force wide multiply

maps cleanly to mul.wide.s32 in PTX rather than a mul.lo.s32 followed by a sign-extend.

That explicitness is one reason PTX is so helpful for debugging codegen.

If your kernel suddenly contains more conversions than expected, PTX often shows the problem immediately.

Contrast to CPU Assembly

State Spaces: PTX Makes Memory Explicit

One of the best parts of PTX is that it makes memory behavior much more explicit than CUDA source. Sometimes the state space is written directly, and sometimes generated PTX uses generic addressing that resolves to a concrete state space later.

The big state spaces to remember are:

Examples:

ld.param.u32    %r1, [kernel_param_0]; // read a 32-bit kernel argument from .param space
ld.global.f32   %f1, [%rd1];           // load float from global memory address in %rd1
st.global.f32   [%rd2], %f2;           // store float %f2 to global memory address in %rd2
ld.shared.u32   %r2, [%rd3];           // load 32-bit value from shared memory (block-local)
st.shared.u32   [%rd4], %r5;           // store 32-bit value to shared memory

This is already much more informative than a high-level pointer dereference.

If you see ld.local, that should immediately raise a question:

Is this true thread-local storage, or did register pressure cause a spill?

That single PTX clue often tells you where to look next in the generated code.

Address Calculation in PTX

GPU code spends a lot of time computing addresses.

For a 1D array access like x[i], PTX typically does something like this:

mul.wide.s32  %rd1, %r1, 4;
add.s64       %rd2, %rd_base, %rd1;
ld.global.f32 %f1, [%rd2];

The important thing to see is that array syntax becomes byte-address construction:

CUDA source view

         x[i]

          |
          v

 PTX address-generation view

  +-------------------+
  | i in %r1          |
  | sizeof(float) = 4 |
  +-------------------+
          |
          v
  +--------------------------------+
  | mul.wide.s32 %rd1, %r1, 4      |
  | byte_offset = i * sizeof(T)    |
  +--------------------------------+
          |
          v
  +--------------------------------+
  | add.s64 %rd2, %rd_base, %rd1   |
  | address = base + byte_offset   |
  +--------------------------------+
          |
          v
  +--------------------------------+
  | ld.global.f32 %f1, [%rd2]      |
  | load x[i] from global memory   |
  +--------------------------------+

Why mul.wide.s32?

Because:

• i is often a 32-bit integer,
• the byte offset may need 64-bit addressing,
• and float is 4 bytes.

This is one of the first places where PTX makes the machine model visible.

In C++, x[i] looks tiny. In PTX, you can see the full lowering:

$$ \text{address} = \text{base} + i \times \text{sizeof}(T) $$

That visibility becomes even more useful for multidimensional indexing and pitched memory.

Memory Cache Hints

Beyond state spaces, PTX also lets you provide cache-policy hints for some memory operations.

These are performance hints. They do not change the formal memory consistency behavior of the program. They are most useful for:

• large arrays that do not fit in cache,
• one-time reads that will not be reused,
• streaming workloads where keeping data in cache is unlikely to help.

For global loads, the common cache operators are:

For global stores, the common cache operators are:

Examples:

ld.global.ca.f32  %f1, [%rd1]; // load with .ca: cache at all levels
ld.global.cg.f32  %f2, [%rd2]; // load with .cg: prefer L2 (bypass/limit L1 effects)
st.global.cs.f32  [%rd3], %f3; // store with .cs: streaming-style cache policy

For a PTX reader, the useful mental picture is not the exact cache size of a specific GPU. It is which state spaces can touch which parts of the hierarchy:

                                  One GPU
+--------------------------------------------------------------------------------+
|                                                                                |
|  +------------------------------------------------------------------------+    |
|  | Private to one SM                                                      |    |
|  |                                                                        |    |
|  |  +--------------------------+       +-------------------------------+  |    |
|  |  | Registers                |       | Instruction / constant caches |  |    |
|  |  | - thread-private values  |       | - code fetch path             |  |    |
|  |  | - not addressed by ld/st |       | - .const path                 |  |    |
|  |  +--------------------------+       +-------------------------------+  |    |
|  |                 ^                                  ^                   |    |
|  |                 |                                  |                   |    |
|  |                 v                                  |                   |    |
|  |  +--------------------------+                      |                   |    |
|  |  | L1 data cache /          |                      |                   |    |
|  |  | shared memory region     |                      |                   |    |
|  |  | - may cache .global      |                      |                   |    |
|  |  | - owns .shared storage   |                      |                   |    |
|  |  +--------------------------+                      |                   |    |
|  |                 ^                                  |                   |    |
|  +-----------------|----------------------------------|-------------------+    |
|                    |                                  |                        |
|                    v                                  v                        |
|  +------------------------------------------------------------------------+    |
|  | GPU-wide L2 cache                                                      |    |
|  | - shared by SMs                                                        |    |
|  | - common backing cache for .global, .local, and .const paths           |    |
|  +------------------------------------------------------------------------+    |
|                    ^                                                           |
|                    |                                                           |
|                    v                                                           |
|  +------------------------------------------------------------------------+    |
|  | DRAM / device memory                                                   |    |
|  | - global memory allocation storage                                     |    |
|  | - backing storage for local memory spills and stack-like thread storage|    |
|  | - much larger and much farther away than on-chip caches                |    |
|  +------------------------------------------------------------------------+    |
|                                                                                |
+--------------------------------------------------------------------------------+

Two practical lessons:

1. Default load/store cache behavior works for most kernels. Treat explicit cache modifiers as a sign that the compiler or author is making a specific locality assumption.
2. .cg is common for large, one-time reads like input matrices in matrix multiply.

This is another case where PTX makes the compiler’s assumptions visible. If you see .cg everywhere, the compiler is telling you it expects streaming access patterns.

Special Registers: Where Thread Identity Comes From

PTX exposes special registers for CUDA’s execution hierarchy.

The most common ones are:

The common 1D indexing pattern maps CUDA’s execution hierarchy into ordinary integer arithmetic:

Grid
+------------------------------------------------------------------+
|                                                                  |
|  Block %ctaid.x = 0             Block %ctaid.x = 1               |
|  +----------------------+       +----------------------+         |
|  | %tid.x = 0           |       | %tid.x = 0           |         |
|  | %tid.x = 1           |       | %tid.x = 1           |         |
|  | %tid.x = 2           |       | %tid.x = 2           |         |
|  | ...                  |       | ...                  |         |
|  | %tid.x = %ntid.x - 1 |       | %tid.x = %ntid.x - 1 |         |
|  +----------------------+       +----------------------+         |
|                                                                  |
+------------------------------------------------------------------+

PTX special registers:

  %ctaid.x  -> which block am I in?
  %ntid.x   -> how many threads are in each block?
  %tid.x    -> which thread am I inside this block?

Linear thread index:

  i = %ctaid.x * %ntid.x + %tid.x

Thread Index Calculation in PTX

int i = blockIdx.x * blockDim.x + threadIdx.x;

In PTX, this same computation appears as:

mov.u32    %r1, %tid.x;
mov.u32    %r2, %ctaid.x;
mov.u32    %r3, %ntid.x;
mad.lo.s32 %r4, %r2, %r3, %r1;

Again, PTX makes the mapping explicit.

Breaking this down:

1. mov.u32 %r1, %tid.x; -> load the thread index within the block
2. mov.u32 %r2, %ctaid.x; -> load the block index
3. mov.u32 %r3, %ntid.x; -> load the block dimension (threads per block)
4. mad.lo.s32 %r4, %r2, %r3, %r1; -> compute blockIdx.x * blockDim.x + threadIdx.x in a single multiply-add instruction

The mad.lo.s32 (multiply-add, low 32 bits, signed 32-bit) is a common pattern that fuses the multiply and add into one operation.

For 2D or 3D indexing, you simply repeat this pattern for each dimension. For example, a 2D index like blockIdx.y * blockDim.y + threadIdx.y follows the same structure, just with the .y variants of the special registers.

This is one of the first places where PTX makes the cost of indexing visible. In C++, blockIdx.x * blockDim.x + threadIdx.x disappears into an arithmetic expression. In PTX, you see it materialize as explicit instructions that take up the instruction stream and contribute to register pressure.

Predicates: PTX’s Control-Flow Building Block

On GPUs, simple control flow is often lowered into predicate generation plus predicated execution.

Example:

setp.lt.s32 %p1, %r1, %r2;
@%p1 add.s32 %r3, %r3, 1;

This means:

1. compare %r1 < %r2,
2. store the boolean result in predicate %p1,
3. execute the add only where %p1 is true.

At warp level, a predicate behaves like a per-lane mask for a shared instruction stream:

One warp executing:

  @%p1 add.s32 %r3, %r3, 1;

Lane:       0   1   2   3   4   5   6   7   ...
%p1:        T   T   F   T   F   F   T   T   ...
            |   |       |           |   |
            v   v       v           v   v
Executes:  yes yes  no  yes  no  no yes yes  ...

What happens:

  predicate true   -> lane performs the add and may update %r3
  predicate false  -> lane is masked off for this instruction

The warp still issues one predicated instruction. PTX is showing the mask,
not a separate scalar branch for each thread.

Predicated Instructions

• setp -> compare values and set a predicate register (%p)
• selp -> select between two values using a predicate (branchless select)
• @%pX op... -> execute an instruction only for lanes where predicate is true

setp.lt.s32 %p1, %r1, %r2;
selp.s32    %r1, %r2, %r3, %p1;   // %r1 = (%p1) ? %r2 : %r3
@%p1 mov.s32 %r3, %r4;            // only active where %p1 is true

Conceptually, this is still a shared warp instruction stream (SIMT): one instruction is issued for the warp, and each lane decides whether it is active for that instruction.

What predication means in practice

For a predicated instruction:

• predicate true -> lane executes normally
• predicate false -> lane is masked for that instruction

Even when some lanes are masked off, the instruction still flows through the pipeline. The key effect is that write-back is suppressed for inactive lanes, so their destination state is not updated.

Why compilers like this pattern

• avoids a control-flow change for small conditions
• often avoids warp split/reconvergence overhead for tiny if bodies
• maps naturally to selp for conditional value selection

That is why many short source-level if statements appear as predicate-oriented PTX before final SASS branch behavior is decided.

Important edge cases

• Predication does not remove memory divergence effects
• Too many predicated instructions can waste issue bandwidth when many lanes are inactive
• Compilers may already choose selp automatically for simple ternary-like patterns
• Heavy nested conditions can increase pressure on predicate and general registers

When explicit branches still appear

Branches are still common for:

• larger conditional regions
• loops
• function-call style control flow

@%p1 bra LOOP;

At that point, hardware handles warp-level control flow with reconvergence machinery and scheduling logic.

Common Arithmetic Patterns

Here are the PTX instructions you will see constantly.

Integer arithmetic

add.s32      %r0, %r1, %r2;      // r0 = r1 + r2
sub.s32      %r3, %r4, %r5;      // r3 = r4 - r5
mul.lo.s32   %r6, %r7, %r8;      // r6 = low 32 bits of (r7 * r8)
mad.lo.s32   %r9, %r1, %r2, %r3; // r9 = low 32 bits of (r1 * r2) + r3
mul.wide.s32 %rd1, %r1, %r2;     // rd1 = full 64-bit product of two 32-bit ints

• mul.lo keeps only the low half of the product, while mul.wide widens into a larger destination type.
• mad is a common indexing idiom because it combines multiply + add in one instruction.

Floating-point arithmetic

add.f32      %f0, %f1, %f2;      // f0 = f1 + f2
mul.f32      %f3, %f4, %f5;      // f3 = f4 * f5
fma.rn.f32   %f6, %f1, %f2, %f3; // f6 = (f1 * f2) + f3, one rounded result (rn)

• fma usually gives better throughput and precision than separate mul + add because the intermediate product is not rounded first.

Bitwise and shifts

and.b32 %r0, %r1, %r2; // bitwise AND
or.b32  %r3, %r4, %r5; // bitwise OR
xor.b32 %r6, %r7, %r8; // bitwise XOR
shl.b32 %r9, %r9, 2;   // logical left shift by 2 (often multiply-by-4 for offsets)
shr.u32 %r1, %r1, 1;   // logical right shift by 1 (unsigned divide-by-2)

Special functions

sqrt.rn.f32        %f0,  %f1;   // f0 = sqrt(f1), round-to-nearest
rsqrt.approx.f32   %f2,  %f3;   // f2 = approximate 1/sqrt(f3), fast math style
sin.approx.f32     %f4,  %f5;   // f4 = approximate sin(f5)
cos.approx.f32     %f6,  %f7;   // f6 = approximate cos(f7)
ex2.approx.f32     %f8,  %f9;   // f8 = approximate 2^(f9)
lg2.approx.f32     %f10, %f11;  // f10 = approximate log2(f11)

• In PTX, you will commonly see base-2 forms (ex2, lg2) rather than direct exp/log mnemonics.
• Exact variants (approx vs more precise forms) depend on compiler flags and performance/accuracy choices.

Vectorized instructions (e.g., for matrix multiply)

ld.global.v4.f32   {%f0, %f1, %f2, %f3}, [%rd1]; // load 4 contiguous float32 values from global memory
st.global.v4.f32   [%rd2], {%f4, %f5, %f6, %f7}; // store 4 contiguous float32 values to global memory

If you learn to recognize these common families, most beginner PTX listings become readable very quickly.

A Minimal CUDA -> PTX Walkthrough

Let’s start with a tiny vector addition kernel:

__global__ void addKernel(int *c, const int *a, const int *b, const unsigned long long length)
{
  unsigned long long idx = (blockIdx.x * blockDim.x) + threadIdx.x;

  if (idx < length)
  {
    c[idx] = a[idx] + b[idx];
  }
}

The PTX for this kernel looks like this:

// void addKernel(int *c, const int *a, const int *b, const unsigned long long length)
// Load kernel arguments from .param space into 64-bit registers
ld.param.u64 	%rd2, [_Z9addKernelPiPKiS1_y_param_0]; // param_0 -> c (output pointer base)
ld.param.u64 	%rd3, [_Z9addKernelPiPKiS1_y_param_1]; // param_1 -> a (input pointer base)
ld.param.u64 	%rd4, [_Z9addKernelPiPKiS1_y_param_2]; // param_2 -> b (input pointer base)
ld.param.u64 	%rd5, [_Z9addKernelPiPKiS1_y_param_3]; // param_3 -> length (upper bound for idx)

// unsigned long long idx = (blockIdx.x * blockDim.x) + threadIdx.x;
mov.u32 	%r1, %ctaid.x;      // blockIdx.x: which block this thread belongs to
mov.u32 	%r2, %ntid.x;       // blockDim.x: threads per block
mul.lo.s32 	%r3, %r1, %r2;      // block offset = blockIdx.x * blockDim.x
mov.u32 	%r4, %tid.x;        // threadIdx.x: thread's local index inside the block
add.s32 	%r5, %r3, %r4;      // global linear index (still 32-bit)
cvt.u64.u32 	%rd1, %r5;      // widen to 64-bit because idx/addresses are 64-bit

// if (idx < length)
setp.lt.u64 	%p1, %rd1, %rd5; // p1 = (idx < length)
not.pred 	%p2, %p1;            // p2 = !(idx < length)
@%p2 bra 	$L__BB0_2;           // if out of bounds, jump to exit block
bra.uni 	$L__BB0_1;           // otherwise jump to work block (uniform branch)

// c[idx] = a[idx] + b[idx];
shl.b64 	%rd6, %rd1, 2;       // byte offset = idx * 4 (sizeof(int))
add.s64 	%rd7, %rd3, %rd6;    // address of a[idx] = base_a + offset
ld.u32 	    %r6, [%rd7];         // load a[idx]

shl.b64 	%rd8, %rd1, 2;       // recompute byte offset for b (common compiler pattern)
add.s64 	%rd9, %rd4, %rd8;    // address of b[idx] = base_b + offset
ld.u32 	    %r7, [%rd9];         // load b[idx]

add.s32 	%r8, %r6, %r7;       // sum = a[idx] + b[idx]

shl.b64 	%rd10, %rd1, 2;      // recompute byte offset for c
add.s64 	%rd11, %rd2, %rd10;  // address of c[idx] = base_c + offset
st.u32      [%rd11], %r8;        // store sum to c[idx]

bra.uni 	$L__BB0_2;           // jump to common exit

Notice that the loads and stores above are written as ld.u32 and st.u32, not ld.global.u32 and st.global.u32.

That is still valid PTX. When a memory instruction does not specify a state space, PTX uses generic addressing. In this kernel, the pointer parameters refer to global memory, so the generic addresses resolve to global memory unless they fall inside another state-space window such as .const, .local, or .shared.

This is a common thing to see in generated PTX from tools like Nsight Compute: source-level global pointers may appear as generic-address loads and stores in PTX, even though the effective memory access is global.

Even before looking at SASS, PTX already reveals a lot:

• kernel arguments come from the .param state space,
• thread indexing uses special registers like %tid.x, %ctaid.x, %ntid.x,
• control flow is often built from setp + predicated branch,
• byte addressing for int arrays is explicit (idx << 2, i.e., multiply by 4),
• loads and stores may be written with an explicit state space like ld.global, or with generic addressing as shown here,
• and the core arithmetic here is integer add (add.s32).

That is exactly why PTX is a great first layer to study.

Writing Inline PTX in CUDA C++

If you want to experiment directly, CUDA lets you embed PTX using asm().

A tiny example:

__device__ int add_inline_ptx(int a, int b) {
  int out;
  asm("add.s32 %0, %1, %2;"
      : "=r"(out)
      : "r"(a), "r"(b));
  return out;
}

The placeholders %0, %1, %2 refer to the operands listed after the template string.

A few constraints worth remembering

Example with read-write state:

__device__ int incr_inline_ptx(int x) {
  asm("add.s32 %0, %0, 1;" : "+r"(x));
  return x;
}

Two beginner pitfalls

1. Use asm volatile if the block has side effects that must not be removed or moved.
2. Use the "memory" clobber if the PTX touches memory indirectly and you need a compiler barrier.

Example:

asm volatile ("st.global.u32 [%0], %1;" :: "l"(ptr), "r"(value) : "memory");

Also, if you declare temporary PTX registers inside the asm string, wrap the block in braces to avoid name collisions across inlined copies:

asm volatile (
  "{\n\t"
  "  .reg .u32 t1;\n\t"
  "  mul.lo.u32 t1, %1, %1;\n\t"
  "  mul.lo.u32 %0, t1, %1;\n\t"
  "}"
  : "=r"(y)
  : "r"(x));

Inline PTX is powerful, but for learning PTX itself, I recommend reading generated PTX first and writing inline PTX second.

PTX vs SASS: What Changes Later?

A useful mental model is this:

That is why PTX is the right first stop for understanding code generation, but not the last stop for serious tuning.

If PTX tells you what, SASS tells you how.

What PTX Hides

PTX is excellent, but it can also be misleading if you trust it too much.

Here are the big things it hides:

Final register pressure

PTX virtual registers are not physical registers. The final register count is decided later, after ptxas lowers PTX into SASS and performs allocation.

Exact pipeline pressure

A PTX fma does not directly tell you everything about scheduler pressure, dual issue behavior, or final hardware pipeline mapping.

Scheduling metadata

PTX does not expose the wait barriers, reuse flags, stall counts, or yield hints that appear in SASS disassembly.

Final memory behavior

PTX often shows the memory space, or at least the generic memory operation, but not the full runtime story:

• cache hit rates,
• memory divergence,
• replay overhead,
• bank conflicts,
• scoreboard stalls.

That is why PTX should be read as a clear intermediate representation, not as the complete hardware story.

What PTX Reveals

Reading PTX is not only about translating instructions one by one. It also gives you a compact view of what kind of work the compiler thinks your kernel is doing.

When you scan a PTX file, look for these broad signals:

Instruction mix

Look for:

• arithmetic instructions such as add, mul, mad, and fma,
• conversion instructions such as cvt,
• comparison and predicate setup such as setp,
• branch and control-flow instructions such as bra,
• load and store instructions such as ld.* and st.*.

Why it matters:

The instruction mix tells you whether the source code lowered into simple straight-line work, conversion-heavy code, branch-heavy code, or memory-heavy code. That is often visible before you inspect final SASS.

Integer vs floating-point balance

Look for:

• integer operations with suffixes like .s32, .u32, .s64, and .u64,
• floating-point operations with suffixes like .f32 and .f64,
• mixed-type boundaries where cvt instructions appear,
• address calculations that use integer or wide integer math.

Why it matters:

This tells you what kind of execution resources the kernel is likely to lean on after lowering. A kernel that looks like floating-point math in CUDA source may still contain substantial integer work for indexing, bounds checks, pointer arithmetic, and conversions.

Memory instruction volume

Look for:

• ld.global and st.global for global memory traffic,
• ld.shared and st.shared for shared memory traffic,
• ld.local and st.local for local memory traffic,
• repeated load/store patterns around otherwise simple arithmetic.

Why it matters:

PTX makes memory movement explicit. Even if you do not know the final cache behavior yet, you can see whether the kernel is mostly moving data, mostly computing on data already loaded, or repeatedly recomputing and reloading values.

SASS opcode categories

PTX does not give you the exact hardware instruction stream, but it prepares you to read SASS with the right questions.

Look for:

• PTX arithmetic that may become integer ALU, FP32, FP64, or special-function SASS instructions,
• PTX memory operations that may become architecture-specific load/store opcodes,
• PTX predicate and branch structure that may become predicated SASS instructions or explicit branches,
• PTX conversions and wide arithmetic that may expand into more than one lower-level operation.

Why it matters:

PTX gives you the compiler’s intent. SASS shows the architecture-specific implementation. Reading PTX first helps you group the later SASS into meaningful categories instead of treating the disassembly as a flat list of opcodes.

Conclusion

PTX is the right place to begin if you want to understand CUDA below the source level without immediately drowning in hardware detail.

It teaches you how the compiler thinks in terms of:

• typed operations,
• explicit memory spaces,
• predicate-driven control flow,
• address generation,
• and the structure of GPU kernels.

Most importantly, PTX gives you a readable intermediate language that connects source code to real performance work.

If you can read PTX comfortably, you are already much closer to answering hard questions like:

• Why did this kernel start spilling?
• Why did this branch become predicated?
• Why is this address calculation more expensive than expected?
• Why does the generated code show more memory movement than the source suggests?

That is the point where GPU optimization starts becoming systematic instead of mystical.

Read More

1. Inline PTX Assembly in CUDA
   https://docs.nvidia.com/cuda/archive/12.9.1/inline-ptx-assembly/index.html

2. PTX Instruction Set Architecture (ISA) https://docs.nvidia.com/cuda/parallel-thread-execution/index.html

GPU Microarchitecture Series Navigation

Next: PTX -> SASS Register Mapping
